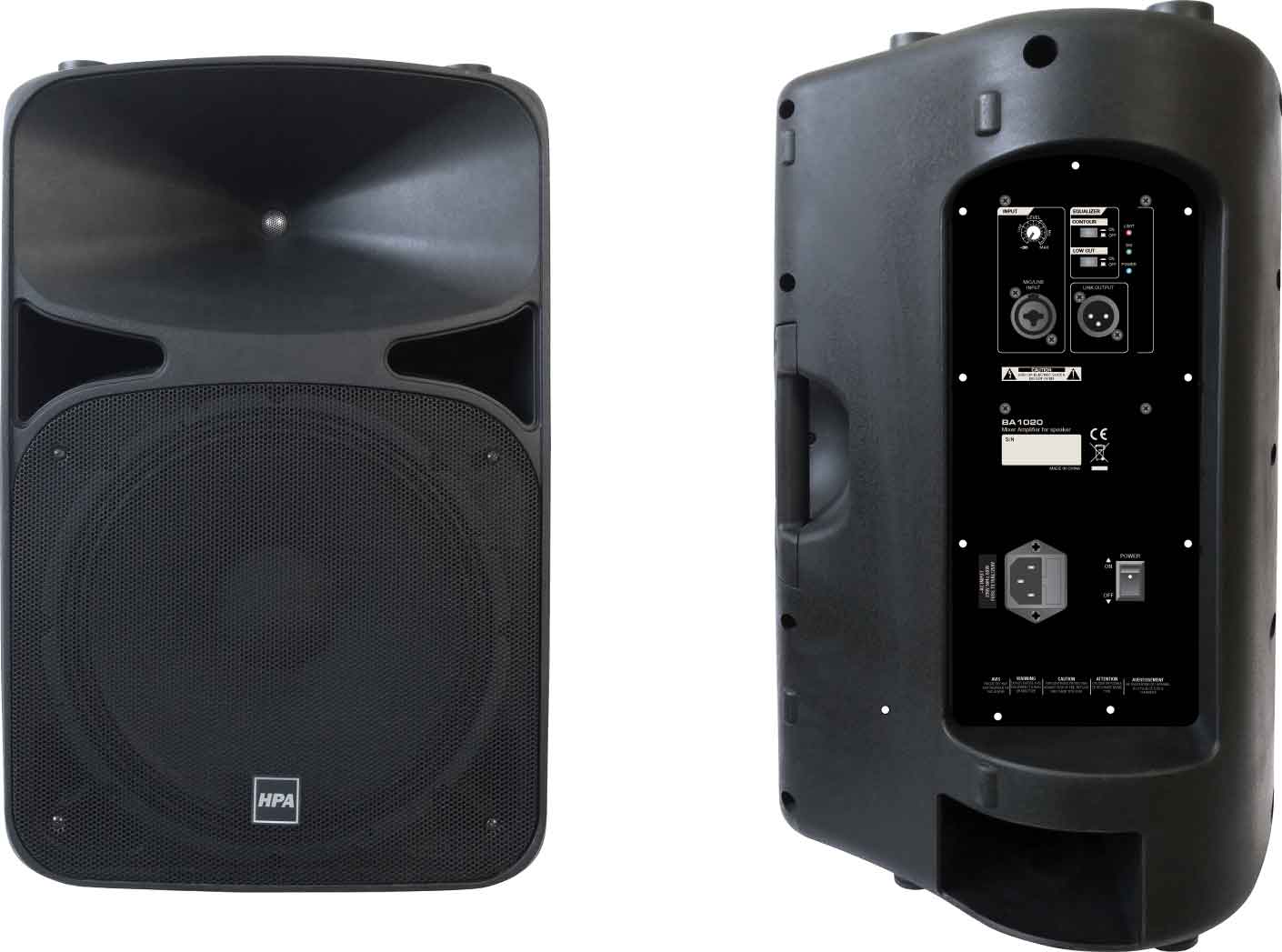

BA 820 / 1020 / 1235 / 1535
Active Speaker System |
|
|
- BA820 – 200 W active 8" 2-way loudspeaker system.
- BA1020 – 200 W active 10" 2-way loudspeaker system.
- BA1235 – 350 W active 12" 2-way loudspeaker system.
- BA1535 – 350 W active 15” 2-way loudspeaker system.
|
| Specifications |
BA820 |
BA1020 |
BA1235 |
BA1535 |
| Amplifier |
LF |
170W |
170W |
300W |
300W |
| HF |
30W |
30W |
50W |
50W |
| Input sensitivity/Impedance |
Mic input |
-32dBu/20Kohm Balanced |
| Line input(BA1235/BA1535) |
0dBu/20Kohm Unbalanced |
| Stereo input (BA1235/BA1535) |
-10dBu/10Kohm Unbalanced |
| Mix Output Level/Impedance(BA1235/BA1535) |
+4dBu/600ohm Unbalanced |
| Cross over frequency |
2.4KHz |
| EQ |
Contour |
95Hz/+4dBu,12KHz/+4dBu |
| Low Cut |
120Hz |
| Encloser |
2 way bass reflex,molded Plastic |
| Frequency response |
50Hz - 20KHz |
48Hz - 20KHz |
47Hz - 20KHz |
44Hz - 17KHz |
| SPL |
120dBu |
122dBu |
125dBu |
129dBu |
| Mounting options |
Pole,Floor wedge |
| Weught (Net) |
7 kg |
10 kg |
14 kg |
19 kg |
| Dimensions (W x H x D) |
268 x 392 x 250mm |
325 x 478 x 295mm |
381 x 573 x 330mm |
468 x 687 x 415mm |
| *Specifications and design subject to change without
notice for improvements. |
|
 |
|
