PS 40

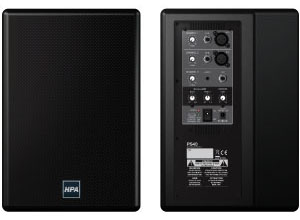

6" 30W Portable PA System with Battery

  • Controls
    – 30W Rated Power output.
    – 2 Mic / Line input and 1 Line input.
    – 2 Band master EQ and Volume for each input channels
    – 1 Effect volume
  • Input Connectors
    – XLR & 1/4" phone jack for Mono input.
    – 1/4" Phone jack & 3.25mm Phone jack or Phono jack for Line input.
  • Indicator
    – Power on, Battery Charge LED.
    – Handle easy carrying.
Specifications PS 40
Rared Power @ THD 1% 30W
Input Sensitivity / Impedance Mic 2mV/20Kohm Balanced
Line 150mV/10Kohm Unbalanced
Frequency Response 35Hz to 16KHz
THD @1/3 Rated Power 0.1%
Signal to Noise Ratio Mic 65dB
Line 80dB
Master Equalization High: 10KHz 10dB, Low: 100Hz 10dB
Effect Echo for Mic Input
AMP Class D
Power Supply 12V / 2.6AH Battery 19V / 3A Adapter
Speaker LF 6"
HF 1"
X-over Frequency 3.5KHz
Power Source 100V-240V, 50/60Hz
Weight (Net) 5.72 kg
Dimensions (W x H x D) 218 x 348 x 200mm
*Specifications and design subject to change without notice for improvements.
