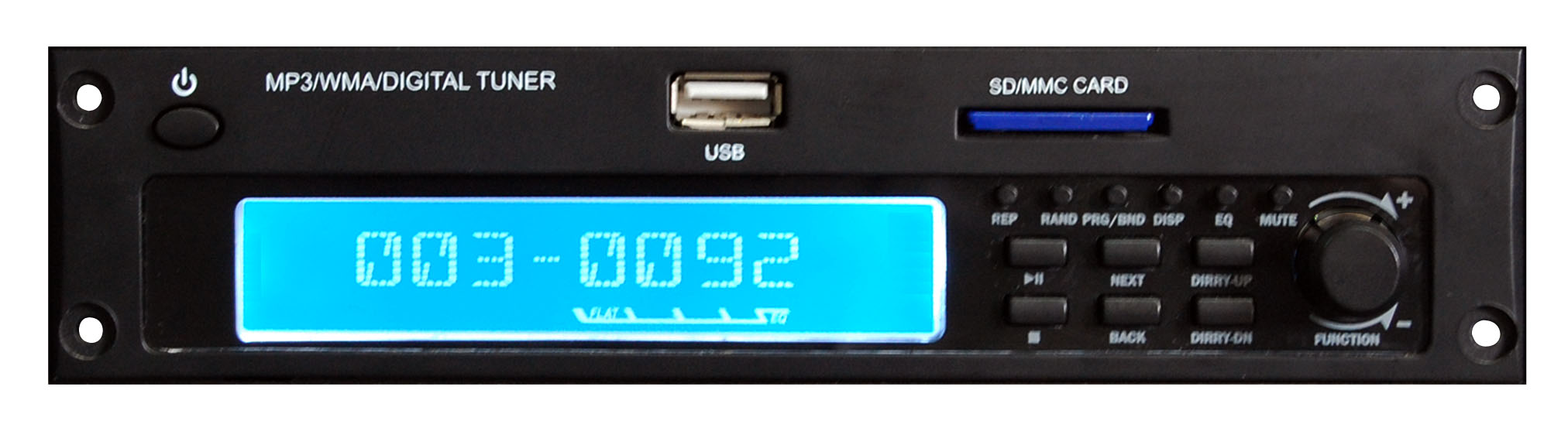

TSU3
Tuner / MP3 Module |
|
|
- Controls
- Function Selector (Tuner, USB and SD/MMC card selection)
- Master Volume and Mute Control
- MP3 Folder and File Search (Up/Down, Next/Previous)
- Intro, Repeat and Random Playback for MP3
- EQ Control (Classic, Jazz, Rock and Pop)
- ID3 Tag Information Display (File name, Title, Album and Artist)
- BAND Auto search and 6 Preset station for Tuner
- Connectors
- 2.54mm pitch pin connector
- Line output
- Music on hold output
- DC 12V power input
- Indicator: LCD with blue back light for whole status of unit
- Accessory: Antenna cable
|
Specifications |
TSU3 |
Tuner section |
FM |
AM |
Frequency Range |
87.5 MHz ~ 108 MHz |
522 kHz ~ 1620 kHz |
Intermediate Frequency |
10.7MHz |
450kHz |
Sensitivity |
2uV @ S/N 30dB |
20 uV @ S/N 20dB |
Signal to Noise Ratio |
60dB |
50dB |
CD/MP3 Player section |
Frequency Response |
1dB @ 20Hz~20kHz |
Signal to Noise Ratio |
60 dB |
Output Level |
1 Volt |
Impedance |
Less than 10 kΩ |
General |
Power Source |
DC 13.2 Volt, 1A max |
Weight (Net) |
1 kg |
Dimensions (WxHxD) |
180 x 20 x 160 mm |
Operating Environment |
0~40℃ 95% humidity |
*Specifications and design subject to change without
notice for improvements.
*It Does not include Memory Cards. |
|
