TA 60/120/240
Public Address Mixer Amplifier |
|
|

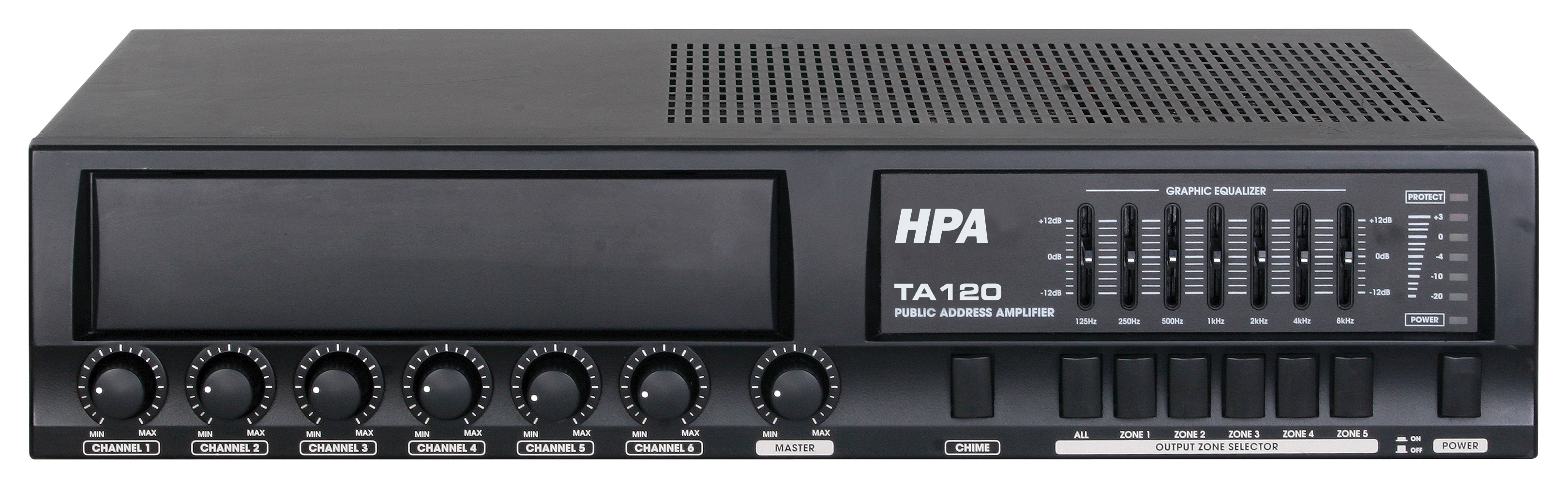

- Front Controls
- 6 channel volume control
- Chime switch
- 5-zone speaker selector
- 7-band graphic equalizer

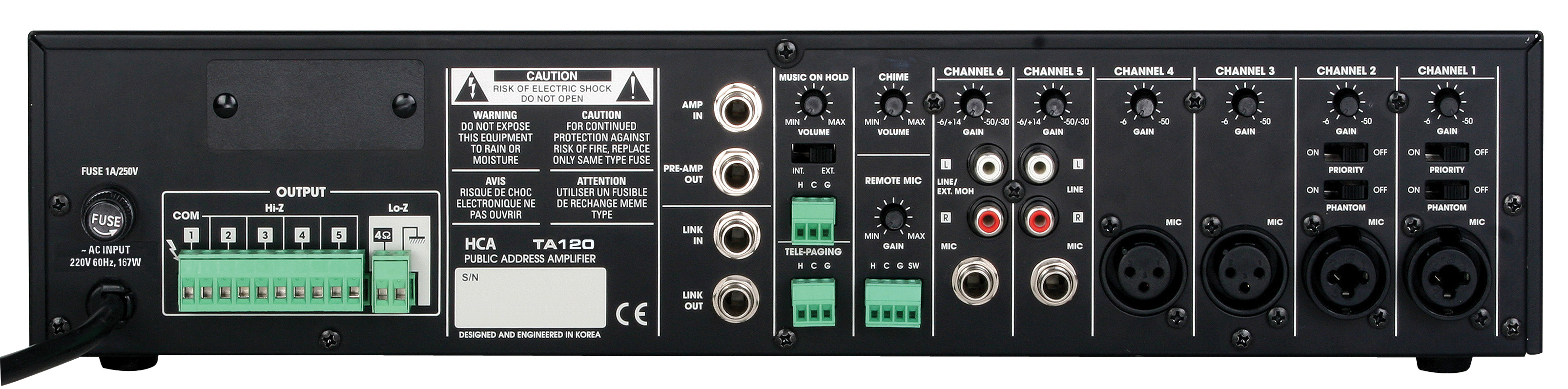

- Rear Controls
- Switch for channel 1 & 2 Trim Pot control for 6 input channel
- Level control for Chime &Remote microphone
- Music On Hold level control & selector
- Input Connectors
- Combo jack electronically balanced for channel 1/2 and XLR jack electronically balanced for channel 3/4
- Dual RCA phono jack for channel 5/6, Euro jack for Remote Mic & Chime and 1/4” phone jack for Amp & Link
Output Connectors
- Euro jack for speaker output & Music On Hold and 1/4” phone jack for Pre-amp & Link
- Indicator: Power, -20 dB, -10 dB, -6 dB, 0 dB, +3 dB & Protect
- Protection: Output current limiting, thermal protection & DC offset protection
- Cooling: Convention cooling
- 19” standard rack mountable

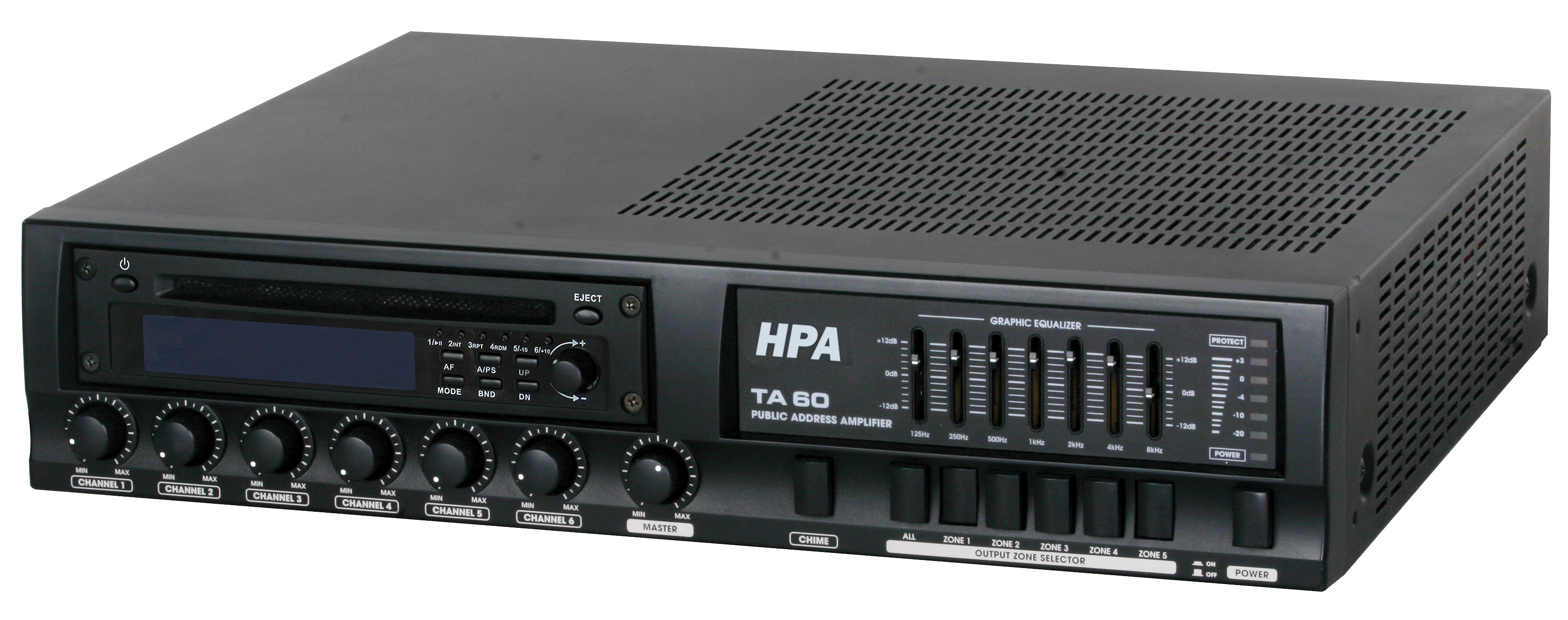

- Option: Tuner/CD(MP3) module
|
Specifications |
TA60 |
TA120 |
TA240 |
Rated Power (RMS) |
60 Watt |
120 Watt |
240 Watt |
Input Sensitivity
/Impedance |
Channel 1-4 |
-50 dB to -6 dB Variale / 20 kΩ Balanced |
Channel 5-6 |
-30 dB to +14 dB Variale / 47 kΩ Unbalanced |
Remote Mic |
-50 dB / 20 kΩ Balanced |
Tele-paging |
0 dB / 600 Ω Balanced |
Amp In, Link In |
0 dB / 10 kΩ Unbalanced |
Output Level
/Impedance |
Speaker Output |
100V(165Ω), 70V(83Ω),
25V(10.4Ω),15.5V(4Ω) |
100V(83Ω), 70V(42Ω),
25V(5.2Ω), 21.9V(4Ω) |
100V(42Ω), 70V(21Ω),
25V(2.6Ω), 31V(4Ω) |
Music On Hold |
∞ to +10 dB Variable / 600Ω Balanced |
Pre-amp Out, Link Out |
0 dB / 600 Ω Unbalanced |
Frequency Response (-3 dB) |
50 Hz - 15 kHz |
T.H.D (1 kHz, Rated Power) |
< 1 % |
Signal to Noise Ratio |
> 100 dB |
Graphic Equalizer |
±12 dB, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz |
Power Source |
AC 100~240 V, 50/60 Hz |
Weight (Net) |
8.7 kg |
9.7 kg |
8.5 kg |
Dimensions (W x H x D) |
420 x 88 x 320 mm |
*Specifications and design subject to change without
notice for improvements. |
|
