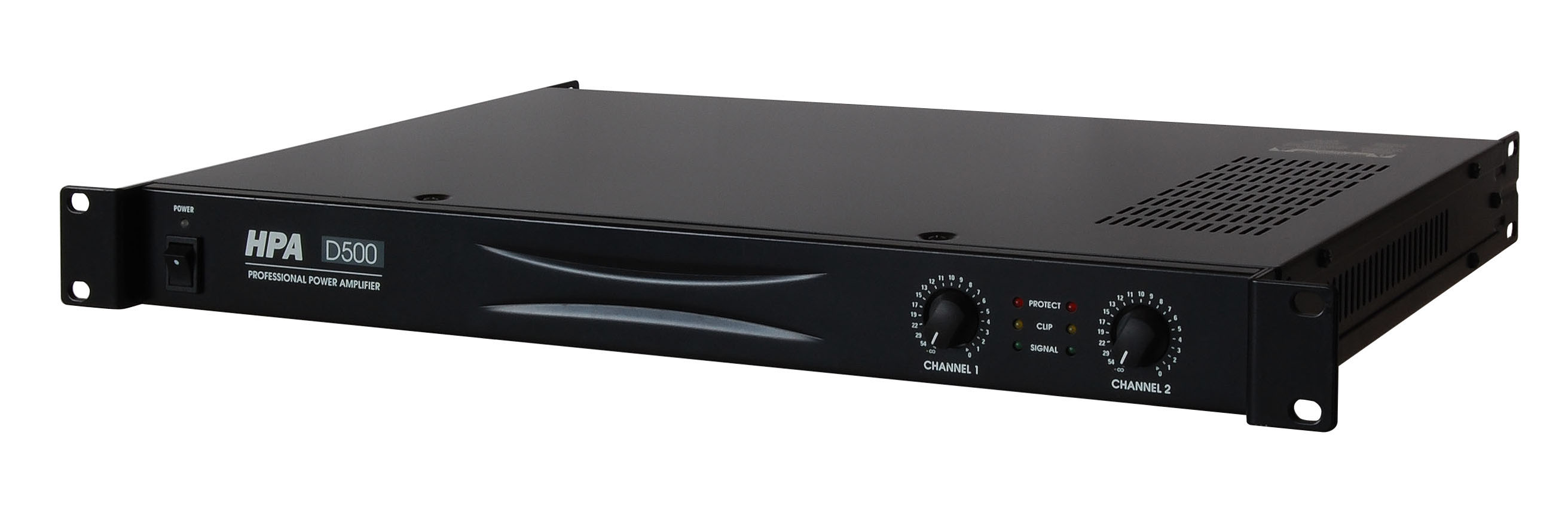

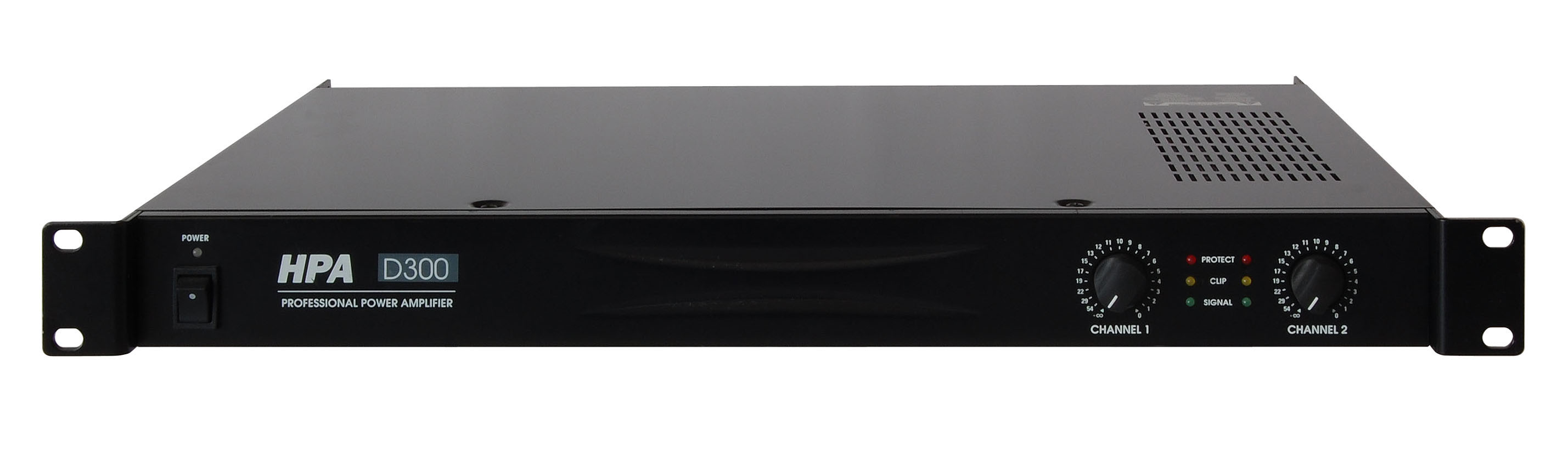

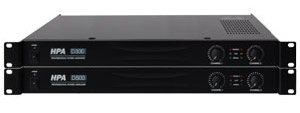

D 300/500
Professional 1U Stereo Power Amplifier |
|
|

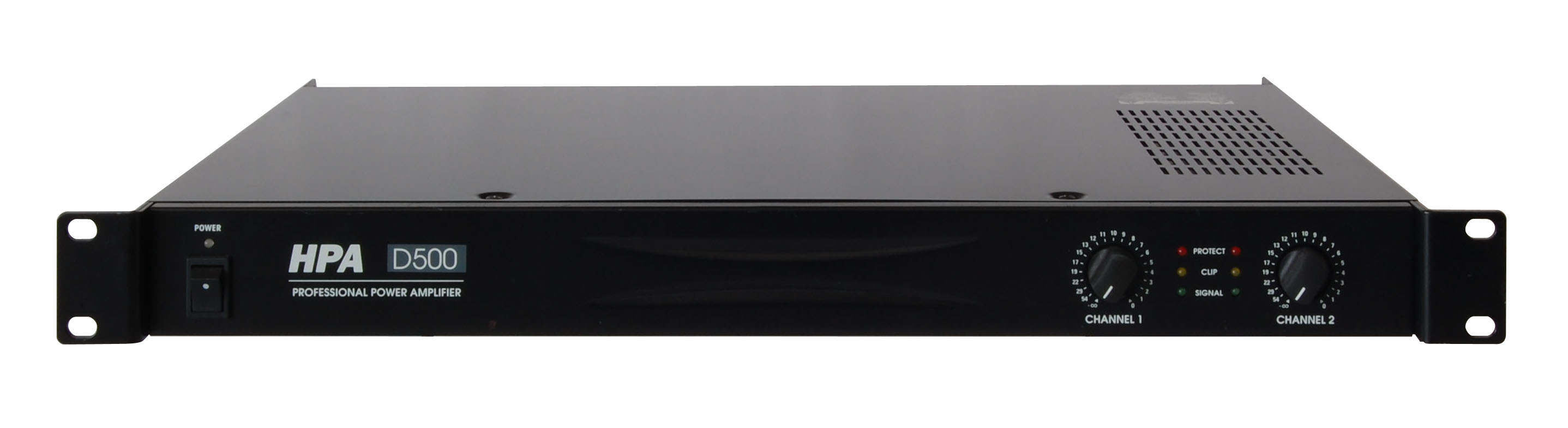

- Controls
- Front: Volume Control by 21 detent potentiometer for each channel
- Rear: Mode Selectot Switch (Parallel/Stereo/Bridged Mono)

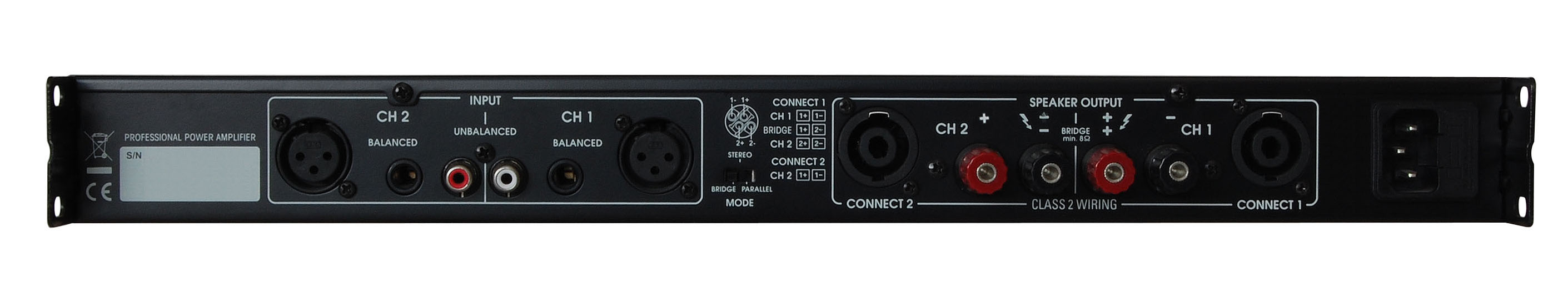

- Connectors
- Input: XLR and 1/4” Phone Jack Balanced & Phono Jack Unbalanced
- Output: 5 way Binding Post & Speakon® Jack for each Channel
- Indicator: Signal, Clip, Protect & Active Power
- Protection: Output Current Limiting, Thermal Protection & DC Offset Protection
- Cooling : Convection Cooling
|
Specifications |
D300 |
D500 |
Rate Power
(1 kHz, THD 1%) |
Stereo @ 8 Ω |
80 W |
130 W |
Stereo @ 4 Ω |
150 W |
250 W |
Bridge @ 8 Ω |
300 W |
500 W |
Input Sensitivity (4Ω, 1 kHz) |
4 dBu |
Input Impedance |
30 kΩ Balanced / 15 kΩ Unbalanced |
Input CMRR (1 kHz) |
> 60dB |
Frequency Response (±1dB) |
20 Hz ~ 20 kHz |
AMP |
Class D |
T.H.D (1 kHz, 1/3 Power) |
< 0.03 % |
Signal to Noise Ratio |
> 100 dB |
Damping Factor (8 Ω, 400 Hz) |
> 200 |
Channel Separation (8 Ω, 1 kHz) |
> 70 dB |
Power Supply |
Switching Mode |
Power Source |
AC 100~240 V, 50/60 Hz |
Weight (Net) |
4.5 kg |
4.6 kg |
Dimensions (W x H x D) |
482 x 44 x 330 mm |
*Specifications and design subject to change without
notice for improvements. |
|
